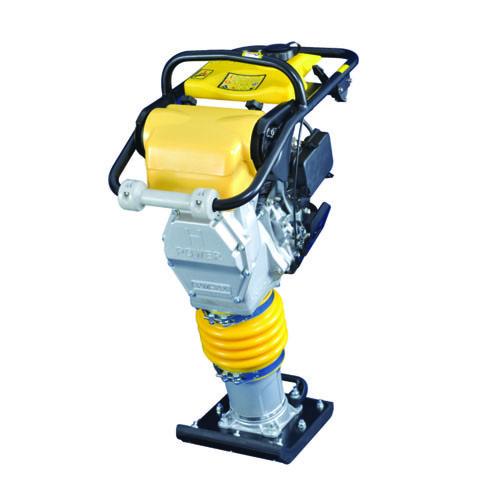

    Construction Jumping Jack Equipment 2.2 Horsepower 10 KN Impact Force

    Ask Lasest Price
    Brand Name : two bears
    Model Number : tw85
    Certification : ce
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 25 working days after received your payment
    • Product Details
    • Company Profile

    Construction Jumping Jack Equipment 2.2 Horsepower 10 KN Impact Force

    ModelHP-RM85RHP-RM85HRHP-RM85H
    EnginePetrol,Robin EH12-2DPetrol,Honda GXR120Petrol,Honda GX160
    Power kw(hp)4.0(2.9)4.0(2.9)4.0(2.9)
    Weight kg86
    Impact force kn15
    Jumping stroke mm50-80
    Impact Number Per Min.640-680
    Fuel Tank Capacity L2.2
    Plate size mm345×285

    amping rammer is designed for the compaction of cohesive,semi-cohesive,clay or mixed soil in narrow confined areas. It is ideal for the compaction of backfill around foundation and forms, subgrades underneath footings and base preparation for concrete work such as slabs,curbs,gutters and pipelines. It is also perfect to general compaction of sand soil,gravel,grit and crush aggregates.


    Features:

    1. Vibrating impact ram should apply to cohesive soil, sand and gravel compaction of the loose materials,Shall not be in the cement road surface and other hard surface.

    2. In order to make the parts for lubrication and increase the engine temperature and normal operation,After combustion battering ram starting, internal combustion engine should be idle running 3-5 min.Then gradually step on the gas, waiting for after beating stable tamping machine then operation.

    3. Homework should correctly grasp the tamping machine, can not tilt, in order to reduce the vibration on the human body, hand held shoulds not be too tight, can control the tamping machine speed.

    4. Where the need to increase the compactness, can be controlled by hand rammer machine in situ compaction repeatedly.

    5. Impact force is adjustable with variable jumping stroke set by throttle lever.
